Universal flat roof solar mounting structure are best solution for large solar panel to fix in long side or short side of solar panel, few components, and easy to install and keep stock
Numéro d'article :
LP-FF-UCommande (MOQ) :
1 PCSPaiement :
TT,L/COrigine du produit :
Xiamen ChinaCouleur :
Silver and BlackPort d'expédition :
Xiamen ChinaDélai de mise en œuvre :
7-15 days

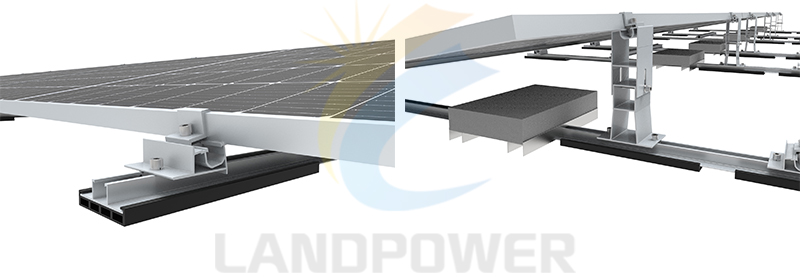

Universal Flat Roof Solar Mounting Structure is design for fixing on long side frame of panel and short side frame of solar panel. It can be used for all the panel If come with our exchange end clamp or our universal end clamp. Just few components for fast installation.

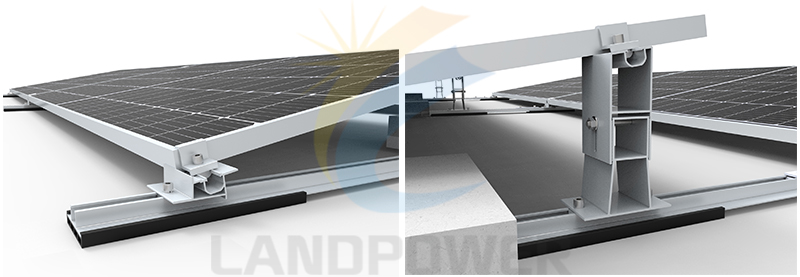

Short Side Fixing

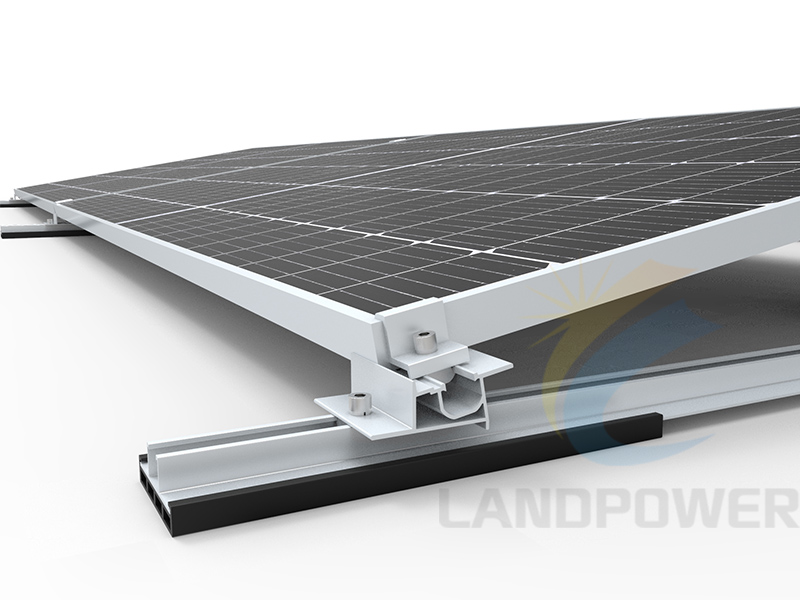

Long Side Fixing
TECHNICAL INFORMATION
Install Site: Flat Roof or Metal Roof
Tilt Angle: 10 degrees
Panel Orientation: Soth facing or East West
Building Height: Up to 20m
Max Wind Speed: <60m/s
Snow Load:<1.4KN/m2
Standard: AS/NZS 1170, EN 1090
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
Warranty: 12 years and 25 years lifespan

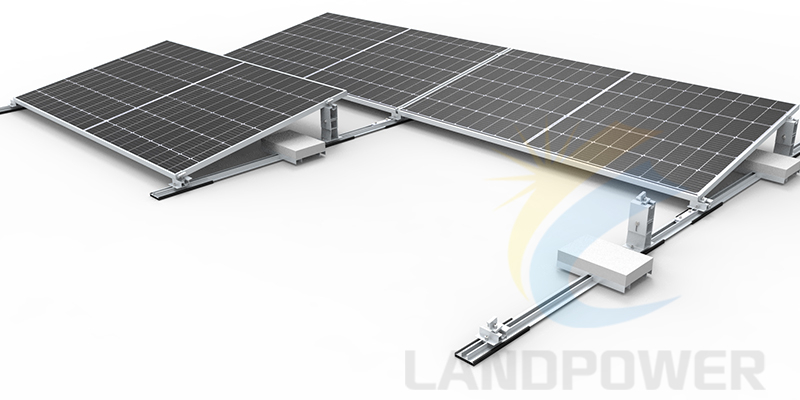

The structure design for both fixing long side and short side of solar panel, just keep the small stocks for most of panels, it can be used to for southing facing and east/west arrangement, for your specific projects, feel free to contact us for more details.
